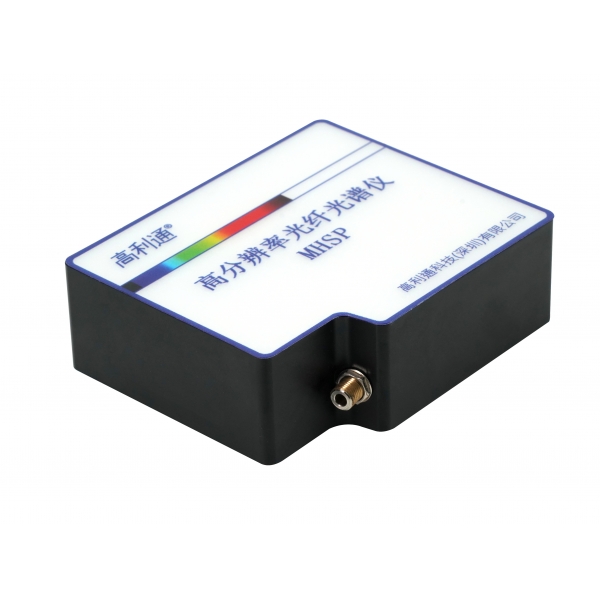

High resolution fiber spectrometer MHSP03P
-
●Unique M-optical structure with a grating, a CMOS light detector and a SMA905 fiber connector
●Controlled by the computer through USB, RS232 or other connector for industrial control
●Unique software features, automatic configuration of spectrometer, automatic reading of calibration coefficients, spectral acquisition and measurement
●Spectral measurements including radiation, transmittance, absorbance and reflectivity
●Interfaces and data formats for industrial control, such as Linux, ARM and PLC etc.
●Compact size and pleasant appearance
●Excellent thermal and vibrating stability
-
●Superior temperature and vibration stability compared to international manufacturers
●Stable mass production capability
●Professional customized services for customers
●Outputs two data formats: the conventional Excel two - column format and the matrix format, with the latter facilitating the observation of spectral data
●The cursor is used to find wavelengths, and moving two regional boundary lines enables the measurement of spectral width
●The software log supports users in recording experimental contents, such as the analyzed materials, operators and time
-
Items
Specifications
Remarks
Fiber Connector
SMA905
Slit
10, 25, 50, 100μm
Wavelength Range
540 - 700nm
Depending on the grating used
Spectral Resolution
FWHM 0.3nm@Hg 546nm@10μm slit
Depending on wavelengths and slit
Light Detector
High end detector
Pixel Number
4096
Pixel Size
14μm×200μm
Detector Collecting Lens
Yes
SNR
300:01:00
Room temperature
ADC Resolution
16 bits
Integration Time
1ms - 15min
Depending on detector used
Data Output
Count - vs. wavelength or pixel
Power Supply
DC5V/100mA
Trigger Mode
Trigger in or out with TTL
Communication
USB or RS232
Data Average
1 - 100 times
The average can be done in the spectrometer; the embedded data segmenter can be selected
Data Interception
1 - 2048 pixels
Operation Software
SPEC - GLA600
Application
glaDevSys
For developing software by users
Programming Interface
For developing software by users
Dimensions
97mm×81mm×31mm
Weight
340g
Mounting
4×M3 screw holes on the bottom
Operating Temperature
- 10 - 50℃
Storage Temperature
- 20 - 70℃
-
●Industrial process control
●Agricultural and food testing
●Petrolem and chemical industry
●R&D in science and technology
