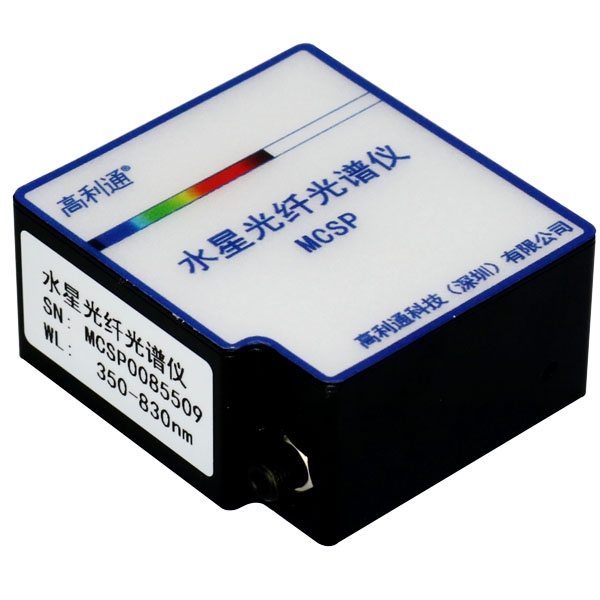

Mercury fiber spectrometer MCSP
-
●Unique M-optical structure with a grating, high end light detector and a SMA905 fiber connector
●Controlled by the computer through Micro-USB, RS232 or other connector for industrial control
●Unique software features automatic configuration of spectrometer, automatic reading of calibration coefficients, spectral acquisition and measurement
●Spectral measurements including radiation, transmittance, absorbance and reflectivity
●Interfaces and data formats for industrial control, such as Linux, ARM and PLC etc.
●Wide band spectrum, large dynamic range, compact size and pleasant appearance
●Characteristics of mass-produced industrial-grade optical fiber spectrometers: excellent consistency, stability and reliability
-
●Superior temperature and vibration stability compared to international manufacturers
●Stable mass production capability
●Professional customized services for customers
●Outputs two data formats: the conventional Excel two - column format and the matrix format, with the latter facilitating the observation of spectral data
●The cursor is used to find wavelengths, and moving two regional boundary lines enables the measurement of spectral width
●The software log supports users in recording experimental contents, such as the analyzed materials, operators and time
-
Items
Specifications
Remarks
Fiber Connector
SMA905
Slit
10, 25, 50, 100pm
Wavelength Range
360 - 800nm
Depending on wavelengths and slit
Spectral Resolution
FWHM 3nm@Hg 365nm@25μm slit
Depending on wavelengths and slit
Sorting Filter
Eliminate higher order spectrum
Light Detector
Line array light detector
SNR
600:01:00
Room temperature
ADC Resolution
16 bits
Integration Time
1ms - 15min
Depending on detector used
Data Output
Count vs. wavelength or pixel
Data Average
1 - 100 times
The average can be done by embedded chip in the spectrometer
Data Interception
1 - 1500 pixels
Data segment can be selected
Power Supply
DC5V/100mA
Communication
USB or RS232
Operation Software
SPEC - GLA600
Application Programming Interface
glaDevSys
For developing software by users
Dimensions
63mmx53mmx27mm
Weight
150g
Mounting
4xM3 screw holes on the bottom
Operating Temperature
- 10 - 50℃
Storage Temperature
- 20 - 70℃
-
●Industrial process control
●Chemical industry
●Optical coating inspection
●Glass and transparent materials inspection
●Measuring light sources such as LEDs
●Fruit,vegetable,food and drugs detection
●R&D in science and technology
