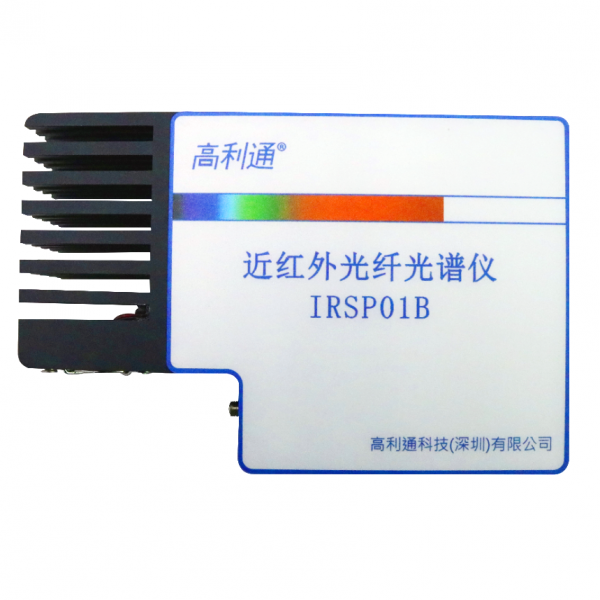

NIR fiber spectrometer IRSP01B
-
●Unique M-optical structure with a grating,a cooled high end light detector and a SMA905 fiber connector
●Controlled by the computer through USB or RS232 connector for industrial control
●Unique software features,automatic configuration of spectrometer, automatic reading of calibration coefficients, spectral acquisition and measurement
●Spectral measurements including radiation, transmittance, absorbance and reflectivity
●Software interface suitable for industrial control
●Compact size and pleasant appearance
●Characteristics of mass-produced industrial-grade optical fiber spectrometers:excellent consistency, stability, and reliability
-
● Superior temperature and vibration stability compared to international manufacturers.
● Stable mass production.
● Professional customisation services for customers.
● Outputs two data formats: conventional Excel two-column format and square matrix format, the latter facilitating the observation of spectral data.
● Different colours mark the selected spectral data on the spectral curve, including cursors and area boundary lines. This unique function helps users easily find data among a large amount of spectral data.
● Cursors are used to find wavelengths, and moving the two area boundary lines allows measurement of the spectral width.
● Software logging supports users in recording experiment details, such as the material analysed, operator and time.
-
Items
Specifications
Remarks
Fiber Connector
SMA905
Slit
100μm
Wavelength Range
950 - 1500nm
Depending on the grating used
Spectral Resolution
FWHM 8 nm@Hg 1130nm@100μm slit
Depending on wavelengths and slit
Light Detector
High end detector
Detector Cooling
15℃
Cooling Power Supply
5V/3A
Pixel Number
516
Pixel Size
25μm x 25μm
Detector Collecting Lens
Yes
SNR
600:01:00
Room temperature
ADC Resolution
16 bits
Integration Time
3ms - 2min
Depending on detector used
Data Output
Count vs. wavelength or pixel
Power Supply
DC5V/500mA
Communication
RS232 and USB type - B
Data Average
1 - 100 times
The average can be done by embedded chip in the spectrometer
Dimensions
185mm x 120mm x 46mm
Weight
~1Kg
Mounting
4xM3 screw holes on the bottom
Operating Temperature
-10 - 40℃
Pay attention to the heat dissipation
Storage Temperature
-20 - 70℃
-
●Environmental inspection: inspection of water quality and air pollution etc.
●Chemical industry
●Optical coating inspection
●Glass and transparent materials inspection
●Measuring light sources
●R&D in science and technology
●Customization
